Water is your highest priority off-grid — and raw water from streams, wells, and even rainwater catchment can harbor bacteria, parasites, viruses, and chemical contaminants invisible to the naked eye. The right filtration and purification system is the difference between thriving on your land and a serious health emergency. This guide covers everything: portable gravity filters, UV purifiers, chemical treatment, ceramic filters, and complete whole-home systems.
1. Why Every Off-Grid Water Source Needs Treatment
The most dangerous assumption off-gridders make is that "natural" water is safe water. Crystal-clear mountain streams can carry Giardia lamblia — a microscopic parasite that causes severe gastrointestinal illness. Shallow wells can be contaminated by agricultural runoff. Even properly collected rainwater contains bacteria, pollen, bird droppings, and atmospheric pollutants before it reaches your tank.
Biological Threats
Bacteria (E. coli, Salmonella), viruses (Norovirus, Hepatitis A), and protozoa (Giardia, Cryptosporidium) can be present in any natural water source regardless of clarity.
Chemical Contaminants
Nitrates from agricultural runoff, arsenic in some geological areas, heavy metals, herbicides, and pesticides can leach into ground and surface water.
Sediment & Turbidity
Sand, silt, clay, and organic particles make water unappealing and can damage pumps, water heaters, and appliances. Even low levels accelerate wear.
Mineral Imbalances
Hard water with excess calcium and magnesium causes scale buildup. Highly acidic water (low pH) is corrosive to pipes. Some minerals are beneficial; others are harmful at high levels.
The Golden Rule of Off-Grid Water
Treat every untested water source as contaminated until proven otherwise. A $200 filtration setup can prevent a $5,000+ medical bill — and significant suffering. Test your water source first, then design your system around the actual threats present.
2. Understanding Your Water Source: Streams, Wells & Rainwater
Different water sources carry different risk profiles. Your filtration strategy should be matched to what your specific source actually contains:
| Source | Bacteria/Virus Risk | Chemical Risk | Sediment | Primary Concern |
|---|---|---|---|---|
| Mountain Stream | 🔴 High | 🟡 Medium | 🔴 High | Giardia, Cryptosporidium, turbidity |
| Spring (surface) | 🟡 Medium | 🟢 Low | 🟡 Medium | Coliform bacteria, parasites |
| Shallow Well (<30 ft) | 🔴 High | 🔴 High | 🟡 Medium | Agricultural runoff, septic contamination |
| Deep Well (100+ ft) | 🟢 Low | 🟡 Medium | 🟢 Low | Arsenic, fluoride, hardness minerals |
| Rainwater (collected) | 🟡 Medium | 🟡 Medium | 🟢 Low | Atmospheric pollutants, roof contaminants |
| Pond / Lake | 🔴 High | 🟡 Medium | 🔴 High | Algae toxins, heavy metals, pathogens |
The most reliable starting point is a professional water test. Basic coliform/nitrate tests cost $30–$80 at most county extension offices or online labs. A comprehensive panel covering metals, pesticides, and biological contaminants runs $150–$300 — money very well spent before designing your system.

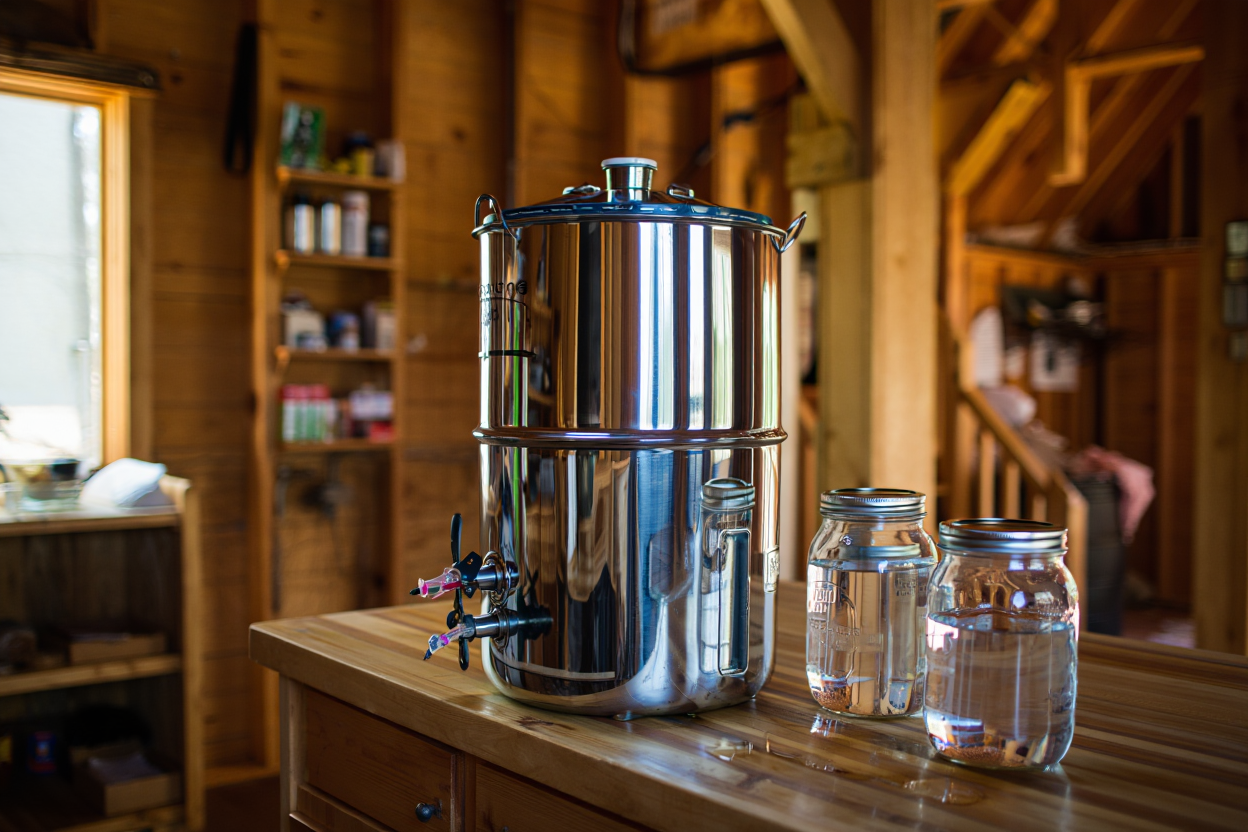

3. Gravity Filters: Berkey-Style Systems
Gravity-fed filtration is one of the most popular off-grid water purification methods — and for good reason. Systems like the Big Berkey require zero electricity, no plumbing, and can filter a remarkable range of contaminants. They work by allowing water to drip slowly through dense ceramic or carbon block filter elements, straining out pathogens and absorbing chemical contaminants.
How Gravity Filters Work
Water is poured into an upper chamber and slowly percolates through black carbon filter elements (in Berkey) or ceramic candles into a lower holding chamber. The slow contact time with filter media is key — it allows thorough removal of contaminants that faster-flowing systems miss.
Popular Gravity Filter Models Compared
| Model | Capacity | Flow Rate | Filter Life | Price | Best For |
|---|---|---|---|---|---|
| Big Berkey (2 elements) | 2.25 gal | ~3.5 gal/hr | 3,000 gal/element | ~$330 | 1–4 people daily |
| Royal Berkey (2 elements) | 3.25 gal | ~4.0 gal/hr | 3,000 gal/element | ~$400 | Family of 4–6 |
| Crown Berkey (2 elements) | 6.0 gal | ~6.5 gal/hr | 3,000 gal/element | ~$450 | Large family, group |
| AquaRain 404 | 4.0 gal | ~1.0 gal/hr | 2,000 gal/element | ~$270 | Ceramic purists |
| Alexapure Pro | 2.25 gal | ~2.0 gal/hr | 5,000 gal | ~$200 | Budget option |
| Doulton Gravity (DIY) | Custom | Variable | 2,000 gal | ~$80–$150 | DIY bucket filters |
Berkey Controversy: Third-Party Test Results
Berkey has faced some criticism due to difficulties obtaining NSF certification. Independent lab tests by users have shown strong results, but always use Berkey filters alongside a pre-filter for turbid (murky) source water, as sediment significantly reduces filter life and flow rate.
DIY gravity filter buckets are a great budget option. Two 5-gallon food-grade buckets and a $30–$60 ceramic candle filter (Doulton, British Berkefeld, or Sawyer) can replicate 80% of a commercial unit's performance for under $80 total.
4. UV Purifiers: The Science of Light-Based Disinfection
Ultraviolet (UV) purification is arguably the most effective method for biological disinfection. UV light at the 254 nm wavelength disrupts the DNA of microorganisms — bacteria, viruses, and protozoa — rendering them unable to reproduce. With a 99.99% (4-log) kill rate on most pathogens, UV is the gold standard for disinfection in permanent off-grid installations.
Point-of-Use UV (Countertop/Under-Sink)
Viqua D4 Premium, Watts UV
Advantages
- Low cost ($50–$200)
- Treats only what you drink/cook
- Easy to install
- Great for well water users
Limitations
- Doesn't help non-drinking water
- Small lamp needs annual replacement
- Requires pre-filtration for turbid water
Whole-House UV System
Viqua VH410, Trojan UV Max C4+
Advantages
- Treats all household water
- No taste or chemical impact
- Continuous disinfection at high flow rates
- Cost-effective for well or spring systems
Limitations
- Higher upfront cost ($300–$1,200)
- Requires electricity (8–30W)
- Must have pre-filtration for effectiveness
Portable UV Pen (SteriPen)
SteriPen Ultra, SteriPen Adventurer Opti
Advantages
- Ultra-compact and lightweight
- Treats 1 liter in 90 seconds
- Ideal for travel, camping, emergencies
- No filter replacement needed
Limitations
- Battery dependent
- Only treats clear water effectively
- Must stir continuously during treatment
- Treats one container at a time
Critical Rule: UV Requires Pre-Filtration
UV light is blocked by turbidity (cloudiness). If your water has any visible particulates, UV will be significantly less effective. Always run water through a 5–20 micron sediment filter before UV treatment. For the highest safety, follow with a carbon block filter: Sediment → Carbon → UV.
5. Chemical Purification: Chlorine, Iodine & Aquatabs
Chemical purification is the most portable and affordable backup method. It's ideal for emergency kits, short-term use, and as a final backstop when other systems fail. However, chemicals have real limitations and shouldn't be relied upon as a primary long-term solution.
Sodium Hypochlorite (Bleach)
Iodine Tablets (Tetraglycine)
Chlorine Dioxide (Aquatabs/MSR)
Chlorine dioxide (Aquatabs, MSR Aquatabs) is the winner among chemical treatments — it's the only method that kills Cryptosporidium with a reasonable wait time. For all chemical methods, water temperature matters: cold water significantly slows kill times. Always filter sediment before chemical treatment for best results.
Long-term use of iodine tablets is not recommended for pregnant women, people with thyroid conditions, or iodine sensitivity. Chlorine-treated water can be improved with a small vitamin C tablet or neutralizing tablet after the treatment period.
6. Ceramic & Hollow Fiber Portable Filters
For direct stream or spring water treatment, portable mechanical filters are fast, reliable, and don't require electricity or chemicals. Two technologies dominate: ceramic candle filters and hollow fiber membrane filters.
Ceramic Filters
Made from diatomaceous earth or porcelain with pores of 0.2–0.9 microns. Excellent at filtering bacteria and protozoa. Long-lasting and can be cleaned with a scrub brush when flow slows.
Hollow Fiber Membrane Filters
Thousands of tiny hollow tubes with 0.1-micron pores. Water passes through while bacteria and protozoa are blocked. The Sawyer Squeeze and LifeStraw use this technology. Can be backflushed to restore flow rate.
The major limitation of both ceramic and hollow fiber filters is virus removal. In North America, viral contamination of surface water is rare but not impossible (especially near human settlements). For international use or any areas with possible fecal contamination, combine mechanical filtration with UV or chemical disinfection for full-spectrum coverage.
7. Whole-Home Multi-Stage Filtration Systems
For a permanent off-grid homestead, a whole-house filtration system at the point of entry (POE) protects every tap, appliance, and shower. The recommended treatment train is:
Sediment Pre-Filter (50–100 micron)
The first line of defense. Removes coarse sand, silt, rust flakes, and visible particulates. This extends the life of all downstream filters dramatically. Use a spin-down or string-wound sediment filter in a standard 10" or 20" housing. Replace every 3–6 months.
Recommended: 10" whole-house sediment filter, 50 micron. ~$15–$30 cartridge replacement.
Fine Sediment Filter (5–10 micron)
A finer sediment stage catches particles that passed the first stage. This is especially important for well water with fine silts or red iron oxide particles. Also protects the carbon filter from excessive particle loading.
Recommended: 10" pleated polyester or cellulose cartridge, 5–10 micron.
Activated Carbon Block (0.5–5 micron)
Removes chlorine, chloramines, chlorine byproducts, herbicides, pesticides, VOCs, hydrogen sulfide (rotten egg smell), and significantly improves taste and odor. Carbon block filters (not granular) provide more contact time and better contaminant reduction. Replace every 6–12 months.
Recommended: Whole-house carbon block filter. Catalytic carbon for chloramines and hydrogen sulfide.
UV Sterilization Chamber
The final and most critical stage for biological safety. A whole-house UV chamber (e.g., Viqua VH410, 12 GPM) irradiates all water passing through with 254 nm UV light, achieving 99.99% kill rate for bacteria, viruses, and protozoa. Replace the UV lamp annually even if it still lights — output degrades with use.
Recommended: Viqua VH410 (40W, 12 GPM) or Trojan UVMax C4+ for high-flow applications.
Point-of-Use Reverse Osmosis
For drinking and cooking water only, add an under-sink RO system (e.g., iSpring RCC7, APEC ROES-50). RO removes dissolved solids, nitrates, arsenic, fluoride, pharmaceuticals, and virtually everything else. Produces 50–100 gallons per day of extremely pure water. Add a remineralization cartridge to improve taste and alkalinity.
Recommended: APEC ROES-50 5-stage RO ($170–$200). Pair with remineralization stage.
Whole-Home System Build Costs (DIY)
| Component | DIY Cost | Annual Maintenance | Lifespan |
|---|---|---|---|
| Sediment Pre-Filter Housing | $30–$60 | $15–$40 (cartridge) | 10+ years |
| Carbon Block Filter Housing | $40–$80 | $20–$60 (cartridge) | 10+ years |
| Whole-House UV System | $200–$700 | $40–$80 (lamp + sleeve) | 10–15 years |
| Installation Plumbing & Fittings | $50–$150 | — | — |
| Under-Sink RO (optional) | $150–$300 | $60–$120 (memb. + filters) | 5–10 years (membrane) |
| Total (without RO) | $320–$990 | $75–$180/yr | 10–15 years |
8. Testing Your Water: What to Test and When
No filtration system should be designed without first knowing what's actually in your water. Testing is cheap insurance — and it prevents over-engineering (spending money on filters you don't need) or under-engineering (missing a real threat).
Basic Safety Test ($30–$80)
- Total Coliform bacteria
- E. coli (fecal coliform)
- Nitrates & Nitrites
- pH level
- Total Dissolved Solids (TDS)
When to test: Before moving in, after flooding, annually for wells
Comprehensive Panel ($150–$350)
- Full bacteria & coliform panel
- Heavy metals (lead, arsenic, mercury, cadmium)
- Pesticides & herbicides
- Volatile organic compounds (VOCs)
- Hardness, alkalinity, turbidity
- Radon (if in granite geology)
When to test: New property, near agricultural areas, industrial sites
Where to get water tested: Your county health department (often lowest cost), state-certified private labs (National Testing Laboratories, Tap Score by SimpleLab), or the EPA Safe Drinking Water Hotline (1-800-426-4791) can direct you to certified labs in your area.
Test your well or spring at minimum once per year, ideally in spring after snowmelt and heavy rains — the period of highest contamination risk. After any nearby flooding, drilling, or construction, test immediately before consuming the water.
9. Choosing the Right System for Your Situation
There's no single "best" water filtration system — the right choice depends entirely on your water source, location, household size, budget, and power availability. Here's a practical decision guide:
| Situation | Best Primary System | Best Backup | Budget Range |
|---|---|---|---|
| Deep well (100+ ft), good test results | Carbon block + UV system | Gravity filter (Berkey) | $300–$900 |
| Shallow well or spring | Sediment → Carbon → UV | Chemical tablets | $400–$1,200 |
| Stream or river source | Hollow fiber + UV + carbon | Aquatabs + hollow fiber | $500–$1,500 |
| Rainwater catchment | Sediment → Carbon → UV + RO | Gravity filter | $500–$1,800 |
| No electricity, budget-limited | Berkey-style gravity filter | Aquatabs + boiling | $150–$400 |
| Emergency / temporary | Sawyer Squeeze + Aquatabs | Boiling | $30–$80 |
Layer your protection
No single system catches everything. Mechanical filtration removes particles. Carbon removes chemicals. UV kills biology. Use at least two layers for drinking water.
Always have a backup
Power outages, filter failures, and pump problems happen. Keep a gravity filter or at minimum a 2-week supply of purification tablets as a backup at all times.
Size for real use
A family of 4 uses 80–150 gallons per day. Make sure your system flow rate can handle peak demand without creating a bottleneck.
10. Maintenance Schedule & Common Troubleshooting
The best filtration system in the world fails if it isn't properly maintained. Here's your complete maintenance guide:
Monthly
- Check sediment filter pressure drop (replace if >5 PSI drop)
- Visually inspect gravity filter chambers
- Check UV system indicator light
- Backflush hollow fiber filters
- Taste and smell water — changes signal filter exhaustion
Every 6–12 Months
- Replace sediment cartridge filter
- Replace carbon block filter cartridge
- Replace Berkey Black filter elements (per gallon count)
- Clean gravity filter ceramic elements (gentle scrub)
- Test water quality (basic panel)
Annually
- Replace UV lamp (even if still illuminated)
- Clean and inspect UV quartz sleeve
- Inspect all o-rings and housing seals
- Replace RO membrane if TDS rises >10%
- Full water quality test panel
- Drain and inspect storage tanks for sediment
Common Problems & Fixes
| Problem | Likely Cause | Solution |
|---|---|---|
| Low water pressure at tap | Clogged sediment or carbon filter | Check pressure drop across filters; replace cartridges |
| Slow gravity filter flow | Loaded filter elements | Scrub ceramic; prime Berkey elements; replace if needed |
| Rotten egg / sulfur smell | Hydrogen sulfide in source water | Add catalytic carbon filter or aeration before carbon |
| Cloudy or murky water | Sediment filter bypassed or saturated | Replace sediment pre-filter; check o-ring seals |
| UV alarm or indicator off | Lamp burned out or sensor fouled | Replace UV lamp; clean quartz sleeve with soft cloth |
| Metallic or bitter taste | Carbon filter exhausted or pH issue | Replace carbon block; test pH; add neutralizing filter |
| Water tastes like plastic | New filter leaching; improper flushing | Flush new filters per manufacturer instructions |
